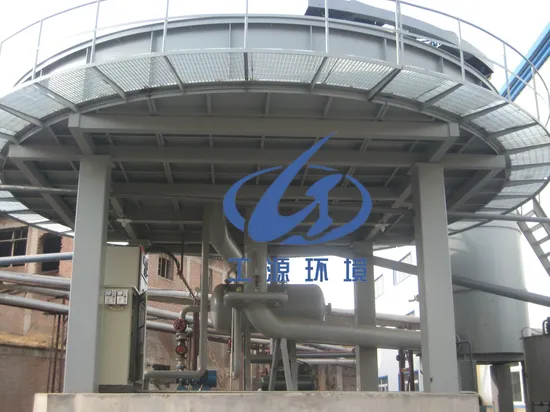

Water Treatment Equipment Daf System Shallow Dissolved Air Flotation for Removing Ss

Basic Info.

Usage	Industrial, Hospital
Product Name	Gqf10 Dissolved Air Flotation
Treatment Capacity	10m3/Hour
Material	Carbon Steel/ SS304/SS316L
Application	Wastewater Treatment
Function	Solid-Liquid Separation
Certificate	CE, ISO9001
Transport Package	Bulk or Plywood Case Packing
Specification	Customized
Trademark	Gongyuan
Origin	China
HS Code	8421219990
Production Capacity	100 Sets/Month

Product Description

Product Description

Liquid-solid separation technology and the related equipment are the essential factor to drainage treatment process. Dissolved air flotation is the most effective method for removing the tiny pollutants from the waste water.


Working Theory

Superficial DAF System, also called cirlar shallow DAF system. It's the main treatment device in water purification system. It mainly used for remove SS--suspended solids and reduce the COD in the waste water.

Superficial DAF designed according to Zero Speed Principle and Shallow Pool Theory.
First of all, the depth of the tank is just 750-950mm. The influence from the equalization tank is pumped into the circular DAF tank after coagulation and flocculation. The rotating system with distributor, scum skimmer and collecting pipes is driven for anti-clockwise rotation while the influence comes at clockwise direction. In this way, the water speed in the tank is zero relatively. The micro bubbles generated by GFA dissolved air system would mix the flocculation and float onto the surface. The depth of the tank is just 750-950mm, which can separate liquid and solids effectively. The scum is scrapped by the rotating skimmer into the central scum slot and falls down the sludge tank downstairs. The clean water is collected and flow into the clean tank. Electric cabinet control all the elements and it just take 3-5 minutes to purify the waste water.

Technical Data Sheet

Application

DAF System, as one waste water treatment process, it is widely used in sewage purification engineering. It can be used for these industries:

Model	Tank Diameter (m)	Capacity (m3/h)	Drive motor (kw)	Skimmer (kw)	Pump (kw)	Air compressor (kw)	Total power (kw)
GQF-10	Φ2	5~10	0.75	0.75	1.5	0.75	4.45
GQF-30	Φ3	20~30	1.1	0.75	3	0.75	5.6
GQF-50	Φ4	40~50	1.1	1.1	7.5	1.5	11.2
GQF-70	Φ5	60~70	1.5	1.1	11	2.2	15.8
GQF-100	Φ6	80~100	1.5	1.1	15	2.2	19.8
GQF-150	Φ7	120~150	1.5	1.1	15	2.2	19.8
GQF-200	Φ8	180~200	2.2	1.5	22	4	29.7
GQF-250	Φ9	220~250	2.2	1.5	22	4	29.7
GQF-300	Φ10	280~300	2.2	1.5	30	5.5	39.2
GQF-400	Φ11	350~400	2.2	1.5	30	5.5	39.2
GQF-500	Φ12	450~500	3	2.2	45	7.5	57.7
GQF-600	Φ13	550~600	3	2.2	45	7.5	57.7
GQF-700	Φ14	650~700	3	2.2	55	7.5	67.7
GQF-800	Φ15	750~800	3	2.2	75	11	91.2

Capacity	30-800M3/H	Re-flux ratio	30%
Cell depth	700-900MM	Dissolved water press	≥0.4MPA
Effective depth	600-750MM	Speed	1/5~1/10RPM
HRT	5-10 MIN	Water surface	6~8 M3/M3.H

1. Paper industry -- pulp recycle in white water and clean water recycled for use. 2. Textile, printing and dyeing industry -- color chromaticity reduction and SS removal 3. Slaughterhouse and food industry 4. Petro-chemical industry -- oil-water separation
